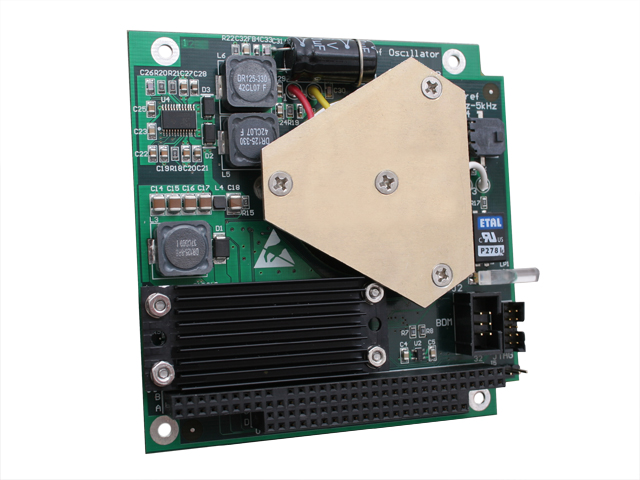

PC/104 REFERENCE SINE OSCILLATOR CARD

Version:

SB-36351, SB-36352, SB-36353

Base Part #:

SB-3635

Package:

PC/104

Lead Free Code:

A

Status:

New

Quantity:

Add to Quote Tech Support

Compact and reliable, PDCs PC/104 Reference Sine Oscillator Cards are engineered for rugged environments and can be used in air cooled systems. The high efficiency reference output reduces heat dissipation making this an ideal solution for systems with limited space and power capacity.

BENEFITS

Programmable Voltage and Frequency
Compact Solution for up to 5VA Drive

APPLICATIONS

Industrial and Military Applications Requiring -40°C to +85°C Temperature Ranges
ATE (Automated Test Equipment)
Robotics
Gimbal Control
Antenna Positioning

Save on Maintenance Costs, No Calibration Required
5 VA reference Sine drive
Transformer isolated output
Software programmable voltage and frequency
- 400 Hz to 8191 Hz in 1 Hz resolution steps
- 2V to 123V
High efficiency regulated output
Drives high inductive loads
Short circuit protection
Rugged design, all cards are conformal coated
Power derived from +5V only

Product Brief

SB-363XXCX Synchro/Resolver PC/104 Cards Product Brief

Rev: 4 (2 Pages, 778.37 KB)

Manual

SB-36350CX PC/104 Power Oscillator Card Hardware Manual (MN-36350CX-001)

Rev: A (24 Pages, 2 MB)

Guide

Synchro/Resolver Conversion Handbook

Rev: 2009-03-04 (126 Pages, 1 MB)

Overview

Synchro/Resolver Solutions Flyer

Rev: 18 (2 Pages, 1.05 MB)

Product Catalog

DDC Product Catalog

Rev: 8 (84 Pages, 33.60 MB)

Ordering Information for SB-36350CX PC/104 Power Oscillator Card

Rev: A (1 Pages, 461 KB)
