48SD1616B 256 Mb SDRAM 4-Meg X 16-Bit X 4-Banks

PDC's Synchronous Dynamic Random Access Memory (SDRAM) is ideally suited for space applications requiring high performance computing and high density memory storage. As microprocessors increase in speed and demand for higher density memory escalates, SDRAM has proven to be the ultimate solution by providing bit-counts up to 256 Mega Bits and speeds up to 100 Megahertz. SDRAMs represent a significant advantage in memory technology over traditional DRAMs including the ability to burst data synchronously at high rates with automatic column-address generation, the ability to interleave between banks masking precharge time.

PDC's patented RAD-PAK packaging technology incorporates radiation shielding in the microcircuit package. It eliminates the need for box shielding for a lifetime in orbit or space mission. In a typical GEO orbit, RAD-PAK provides greater than 100 krads(Si) radiation dose tolerance. This product is available with PDC’s self-defined Microelectronics Space Grade.

256 Megabit ( 4-Meg X 16-Bit X 4-Banks)
RAD-PAK radiation-hardened against natural space radiation
Total Dose Hardness:
- >100 krad (Si), depending upon space mission
Excellent Single Event Effects:
- SEL_TH > 85 MeV/mg/cm² @25°C
JEDEC Standard 3.3V Power Supply
Operating Current: 115 mA
Clock Frequency: 100 MHz Operation
Operating tremperature: -55 to +125 °C
Auto Refresh
Single pulsed RAS
2 Burst Sequence variations
- Sequential (BL =1/2/4/8)
- Interleave (BL = 1/2/4/8)
Programmable CAS latency: 2/3
Power Down and Clock Suspend Modes
LVTTL Compatible Inputs and Outputs

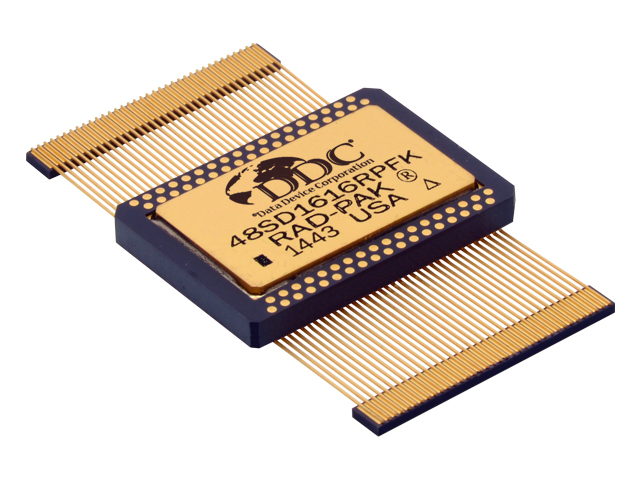

Package: 72-Pin RAD-PAK Flat Package
